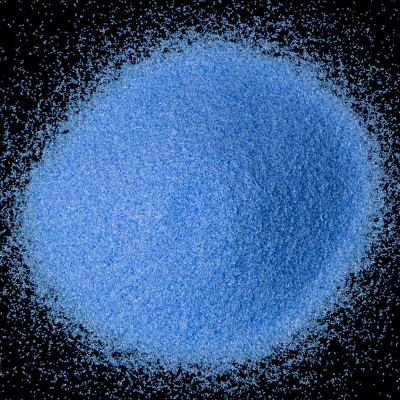

Ceramic Abrasive
Peb cov ceramic abrasive, tsim los siv cov sol-gel thev naus laus zis, muaj cov qauv zoo ultra- microcrystalline uas ua kom nws tus kheej tsis tu ncua -sharpening thiab siab txiav efficiency. Piv rau cov tsoos fused alumina, nws muaj kev pab cuam lub neej ntev dua, hnav zoo dua, thiab kev sib tsoo ruaj khov dua. Haum rau coated abrasives, bonded abrasives, polishing, thiab txiav, nws yog ib qho kev xaiv zoo tshaj plaws rau kev ua cov hlau tsis muaj steel, cov cuab yeej steel, thiab lwm yam nyuaj - rau - cov khoom siv tshuab thaum txo tag nrho cov nqi tsim khoom.
Hauj lwm lawm
Nyob rau niaj hnub no qhov xav tau kev tsim ib puag ncig, efficiency, precision, thiab durability yog qhov tseem ceeb. Pebceramic abrasive siv, tsim los siv cov sol-gel thev naus laus zis, yog tsim los xa cov kev sib tsoo zoo tshaj plaws hla cov coated abrasives, sib txuas abrasives, precision polishing, thiab txiav daim ntaub ntawv. Nws yog ib qho kev daws teeb meem zoo tshaj plaws rau kev lag luam uas xav tau cov khoom zoo sib xws thiab cov khoom siv siab heev.
Advanced Microstructure rau Superior Performance
Qhov no ceramic abrasive yog tsim los ntawm cov txheej txheem sol-gel, ua rau ultra-zoo microcrystalline qauv. Txhua cov nplej muaj ntau lab tus submicron crystals (100-500 nm), uas yog tsawg dua 1% ntawm cov siv lead ua loj pom nyob rau hauv cov tsoos fused alumina.
Cov qauv tshwj xeeb no ua rau nws tus kheej tsis tu ncua -ntse nyhuv. Thaum lub sij hawm sib tsoo, es tsis txhob ua npub xws li cov pa abrasives, cov ceramic abrasive puas ntawm qib micro, tas li nthuav tawm cov ntse txiav tshiab. Qhov no ua kom:
Kev ua haujlwm zoo sib xws thiab txhoj puab heev txiav
Txo kev sib tsoo cua sov thiab tsawg kawg ntawm kev kub hnyiab
Lub neej ua haujlwm ntev dua piv rau cov pa abrasives
Khoom Specification
| Chemical Composition (tus nqi raug) |
Al2O3 99.22% |
| Na2O 0.08% | |
| Khoom | BCA |
| Cov duab | Hmoov |
| Qhov ceev (g / cm3) | >3.90 |
| Porosity | 0% |
| Xim | Liab, dawb...... |
| Vickers Hardness Hv (khf/mm2) | 2100-2200 |
| Pob Sib Tsoo Toughness | 65.6% |
| Khoom | BCA | Imported | Hauv tsev | |
| Microcrystal loj (um) | 0.4 | 0.5 | 1 | Me me Microcrystal loj |
| Vicker Hardness (Hv) | 2100-2200 | 2100-2200 | 2000-2200 | Siab Hardness |
Cov txiaj ntsig tseem ceeb ntawm Ceramic Abrasive Tools
Abrasive cov cuab yeej ua nrog ceramic abrasive muab qhov zoo tshaj plaws:
High sib tsoo Efficiency
Cov qauv ntse ntse ua kom muaj peev xwm txiav muaj zog, tso cai rau hnyav- lub luag haujlwm sib tsoo. Cov txiaj ntsig kev xeem qhia:
Tib - kis tus nqi pub tshaj 0.3 mm
Hlau tshem tawm tus nqi ntau dua ob zaug ntawm tus qauv corundum sib tsoo lub log
01
Zoo heev hnav tsis kam
Nrog siab toughness thiab tsis tshua muaj hnav, ceramic abrasive tswj cov duab ntawm cov cuab yeej sib tsoo, ua rau nws zoo tagnrho rau:
Precision sib tsoo
Profile sib tsoo
Cov ntawv thov uas xav tau qhov tseeb qhov tseeb
02
Lub neej ua haujlwm ntev
Piv nrog rau cov pa abrasives, ceramic abrasive cov cuab yeej tuaj yeem kav ntev li 5-10 zaug, txo:
Hloov zaus
Tshuab downtime
Cov nqi kho mob
03
Stable Self-Ntxhais ua tau zoo
Kev sib txuas txuas ntxiv ntawm cov npoo txiav tshiab tiv thaiv kev thauj khoom thiab glazing. Raws li qhov tshwm sim:
Kev hnav khaub ncaws zaus raug txo los ntawm kwv yees li 30%
Kev sib tsoo kev ua tau zoo tseem ruaj khov nyob rau lub sijhawm ntev ntau lawm
04
Tus nqi -Txoj kev xaiv zoo rau Super Abrasives
Ceramic abrasive muaj kev ua tau zoo nyob ze rau qhov zoo tshaj plaws abrasives thaum tseem pheej yig dua:
Tus nqi qis dua CBN thiab pob zeb diamond abrasives
Tau tshaj cov khoom sib tsoo txheem
Tsis muaj kev cai tshwj xeeb rau cov cuab yeej hnav khaub ncaws lossis cov kua dej sib tsoo
05
Txhim kho Toughness thiab Fracture Behavior
Tsis zoo li cov tsoos fused alumina uas nthuav tawm cov pob txha pob txha, cov ceramic abrasive qhia tau hais tias intergranular micro{0}} tus cwj pwm tawg. Qhov kev tswj kev puas tsuaj no ua rau muaj kev sib zog ua kom muaj zog ntau dua - txog li ob zaug ntawm cov fused alumina zoo tib yam -thaum tswj kev ua kom pom tseeb thoob plaws hauv cov txheej txheem sib tsoo.
Qhov no ua rau nws tshwj xeeb tshaj yog haum rau machining cov ntaub ntawv nyuaj xws li:
Cov cuab yeej steel
Stainless hlau
Thaum tshav kub kub-resistant alloy steel
Ceramic abrasive yog dav siv hauv:
Sib tsoo lub log rau qhov tseeb thiab hnyav- daim ntawv thov
Sandpaper discs thiab abrasive siv
Hlau polishing thiab xov
High-kev ua haujlwm txiav tau zoo
Nws yog tshwj xeeb tshaj yog zoo nyob rau hauv kev lag luam xws liautomotive, aerospace, pwm manufacturing, thiab precision machining.
vim li cas xaiv peb
Nrog kev paub dhau los hauv cov ntaub ntawv abrasive, peb muab siab - ceramic abrasive zoo uas ua tau raws li cov qauv thoob ntiaj teb.
vim li cas thiaj xaiv peb cov khoom
Peb cov khoom yog engineered rau:
Txhim kho kev sib tsoo efficiency thiab tsim tau
Muab cov txheej txheem zoo ib yam
Txo cov nqi khiav lag luam thiab kev poob qis
Ua kom ntseeg tau tias kev ua tau zoo hauv kev thov kev thov
Teeb meem
Qhov kev txiav txim yam tsawg kawg nkaus yog dab tsi?
1 lub thawv yog ok, qhov ntau npaum li cas rau ib lub thawv qhia hauv cov ntawv hauv qab no.
Lub sijhawm khoom xa tuaj yog dab tsi?
Nws yuav siv sijhawm 20-30 hnub suav nrog kev sib xyaw, nias, kho, kuaj thiab ntim. Thawj qhov kev txiav txim nrog OEM hom yuav 15 hnub ntxiv.
Cov xwm txheej yuav txais OEM hom?
Tsis muaj daim ntawv theej, Tsis muaj lub npe cuav, tso daim ntawv tso cai rau cov khoom qub.
Yog tias koj tuaj yeem lees txais ib tus neeg sawv cev lossis xa tawm hauv ib lub tebchaws? Yuav ua li cas yog tus neeg sawv cev?
Nws tsis tsim nyog los ua ib tus neeg sawv cev thaum pib ntawm kev koom tes, tau kawg peb tuaj yeem xav txog nws thaum kev lag luam ntim nce kev ruaj ntseg, koj tuaj yeem txais tos los ua ib qho ntawm peb cov neeg muag khoom lossis cov khw muag khoom txawm tias qhov kev txiav txim kom muaj nuj nqis.
Txhim kho koj qhov kev sib tsoo nrog peb cov kev ua haujlwm siab - ceramic abrasive. Tiv tauj peb hnub no kom tau txais cov lus pom zoo, tus nqi sib tw, thiab cov kev daws teeb meem customized raws li koj daim ntawv thov xav tau. Cia peb txhim kho koj cov khoom tsim tau thiab txo koj cov nqi - pib koj qhov kev nug tam sim no!
