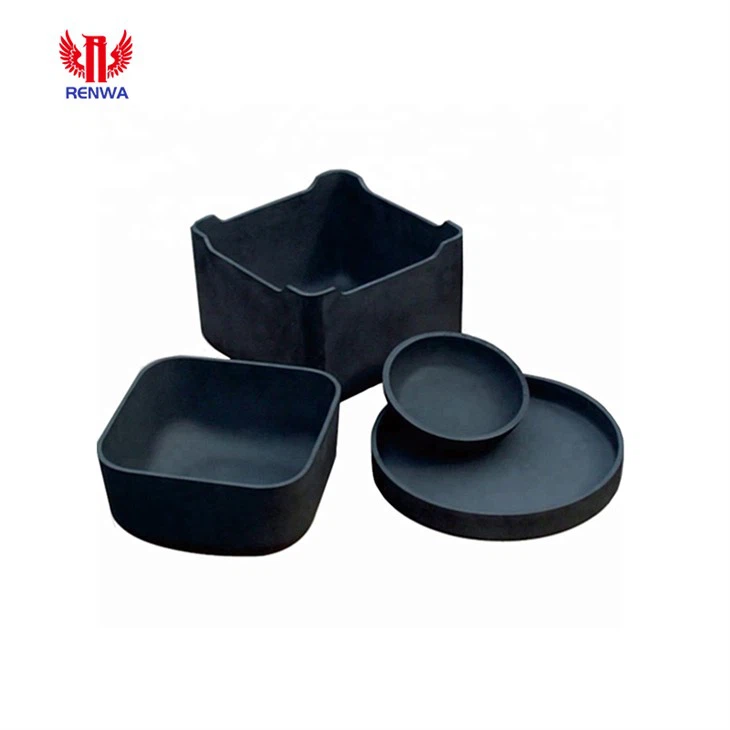

Silicon Nitride Bonded Silicon Carbide Sagger
Lub npe: Silicon Nitride Bonded Silicon Carbide Sagger
Muaj pes tsawg leeg: Silicon nitride, Silicon carbide
Loj: tuaj yeem kho raws li cov neeg siv khoom xav tau
Kev Them Nyiaj:
30% T / T ua ntej rau ntau tshaj USD2000, tshuav nyiaj them ua ntej khoom xa tuaj.
100% T / T them nyiaj tsawg dua USD2000.
Hauj lwm lawm
Cov khoom siv silicon nitride bonded silicon carbide sagger refractory khoom yog tsim los ntawm silicon nitride thiab silicon carbide ua cov ntaub ntawv tseem ceeb, thiab yog tov nrog cov ntaub ntawv organic, tov, extruded los yog cam khwb cia, qhuav thiab nitride. Silicon nitride bonded silicon carbide yog ib yam tshiab ntawm cov khoom siv refractory. Kev siv dav, qhov kub thiab txias yog 1400 degree, muaj thermal stability, thermal shock kev ua tau zoo dua li cov refractory zoo tib yam thiab recrystallized Sic, anti-oxidation, acid thiab alkali tsis kam, hnav tsis kam, thiab muaj zog flexural siab. Nws tuaj yeem tiv taus yaig, yaig, tsis muaj paug, thiab kev kub ceev ceev hauv cov hlau molten xws li txhuas (Al), txhuas (Pb), zinc (Zn), thiab tooj liab (Cu).
Khoom Specification:
Lub cev muaj zog | Qhov ceev (g / cm3)3） | Pom tseeb porosity （%） | Qhov kub thiab txias compressive zog (MPa) | Qhov kub thiab txias dabtsi yog khoov zog (MPa) |
Ntau dua lossis sib npaug rau 2.65 | Tsawg dua los yog sib npaug rau 10.7 | Ntau dua lossis sib npaug li 170 | Ntau tshaj los yog sib npaug rau 30 | |
Chemical muaj pes tsawg leeg (%) | SiC | Si3N4 | Fe2O3 | FSi |
Ntau tshaj los yog sib npaug rau 60 | Ntau dua lossis sib npaug li 37 | Tsawg dua los yog sib npaug li 1.5 | Tsawg dua los yog sib npaug rau 1.0 |
Khoom siv:
1. Thermocouple tiv thaiv raj: Txoj kab uas hla Φ12-80mm, ntev 1800m, siv nyob rau hauv kub kub kiln thiab ntau yam cua, kuj yuav siv tau ncaj qha rau hauv molten kua.
2. Lifting tube, lub tes tsho cua sov thiab lub raj tiv thaiv: Nws yog siv rau hauv cov kua txhuas txhuas thiab iav kua. Nws muaj cov thermal conductivity zoo, corrosion kuj, siab tsis kam thiab lub neej ntev.
3. Raj raj raj: Siv rau hauv av thiab cib rauv, txoj kab uas hla Φ30-50mm, ntev tsawg dua 1600mm, kub tsis kam, tsis deformation, siab zog.
4. Kiln ware: Cov nqaj ua los ntawm silicon nitride ua ke nrog silicon carbide yog siv rau hauv qhov cub, shuttle kiln thiab downdraft kiln. Nws muaj peev xwm nqa tau zoo thiab yog qhov zoo tshaj plaws rau kev nce cov khoom siv hluav taws xob thiab ua kom tag nrho ntawm qhov chaw kiln. Cov rooj tog hauv tsev kuj tseem siv tau los ua ib qho kev txhawb nqa nrog qhov kub txog li 1400 degree. Nws tuaj yeem ua tiav lub hom phiaj ntawm kev txhim kho cov khoom zoo thiab ua kom muaj zog ntau lawm yam tsis muaj kev nqis peev ntau ntxiv. Nws yog ib qho zoo tagnrho hloov khoom.
5. Txhua yam ntawm cov khoom siv refractory: Nws muaj cov yam ntxwv ntawm kev tiv thaiv smashing, kub tsis kam, hnav tsis kam, ceev ceev tsis kam, thiab lwm yam. Nws yog tsim rau cov cua kub exchangers, cua txias tube, burners, crucibles, thiab lwm yam.
Silicon nitride ua ke nrog silicon carbide tuaj yeem ua tsis tau tsuas yog ua kom lub zog txuag, tab sis kuj xyuas kom meej tias cov khoom tsis muaj kuab paug, thiab muaj lub neej ua haujlwm ntev thiab kev ua haujlwm yooj yim.
Cov khoom ntim:
FAQ:
Q: Cov qauv pub dawb?
A: Yog lawm, peb tuaj yeem muab cov qauv dawb ntawm tus nqi.
Q: Muaj pes tsawg hnub rau kev kuaj?
A: 7 ~ 10 hnub rau qhov loj me peb muaj.
Q: Muaj pes tsawg hnub rau kev tsim khoom?
A: 30 ~ 60 hnub raws li qhov loj thiab ntau.
Q: Peb puas tuaj yeem muab peb lub logo?
A: Tseeb, cov neeg siv khoom logo tuaj yeem ua los ntawm laser engraved embossed hloov luam ntawv.
Cim npe nrov: silicon nitride bonded silicon carbide sagger, Tuam Tshoj, manufacturers, lwm tus neeg, Hoobkas, lag luam wholesale, yuav, nqe, Tshuag, zoo, dawb qauv
