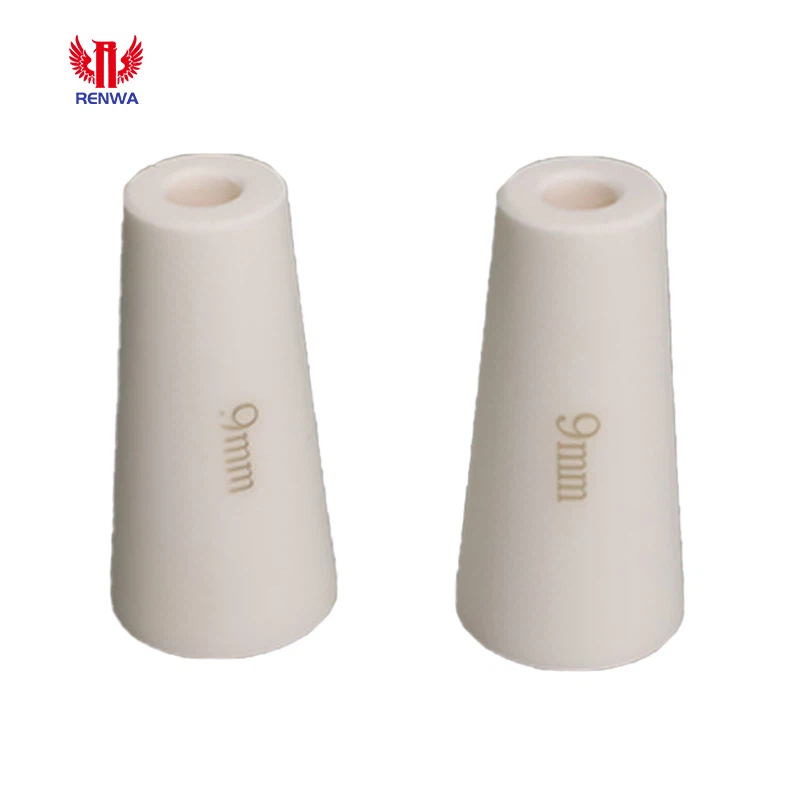

Alumina Ceramic Nozzle

Hauv sandblasting, ceramic nozzles yog siv los coj tus nqi siab ntawm cov xov xwm abrasive (xws li cov xuab zeb lossis steel pob) ntawm qhov chaw ntawm lub workpiece kom tshem tawm cov coatings, xeb, lossis cov kab mob. Sandblasting thiab dispersion nozzles yog ua los ntawm alumina ceramics los yog composites uas muaj alumina thiab chromium oxide uas muaj hardness heev thiab hnav tsis kam.

Cov khoom siv rau kev ua sandblasting nozzles yog cam khwb cia hlau, steel, cemented carbide thiab alumina ceramic. Cam khwb cia hlau thiab steel sandblasting nozzles yog qhov yooj yim rau kev tsim khoom, nws yog tus nqi qis tab sis lub neej qis heev, thiab lawv tsis haum rau kev ua haujlwm loj. Feem ntau hais lus, nyob rau hauv tib lub sijhawm, lub neej ntawm cov hlau sandblasting nozzle tsis zoo li cov cemented carbide sandblasting nozzle, thiab lub neej ntawm cemented carbide sandblasting nozzle tsis zoo li ntawm alumina ceramic nozzle.

Alumina ceramic nozzle yog ib qho zoo tshaj plaws abrasion resistant blasting nozzle siv nyob rau hauv ntau daim ntawv thov, ua tsaug rau super siab hardness, zoo heev tawg toughness, lub neej lub sij hawm ntev npaum li cas ntawm cov hlau thiab cemented carbide.





Khoom Specification:

Kev piav qhia	Nozzle ID (mm)	OD (mm) d	OD (mm) D	Ntev (mm) L
Alumina Ceramic Nozzle No.9	9	20	30	62.5
Ntev siv	Hlau/Grit txhaj 20-40 Xuab zeb 10-30 Aluminium oxide 1-4
Kev siv kub siab tshaj plaws	1800 ºC (3272ºF)
Hardness	Mohs 9.0, HRA 80-90
Hnav Resistance Hnav Rate	0.68 mm3·m-2·h{4}}
Hluav taws xob Resistivity	10∧14 Ohm.Cm
High Polished nto	Rz{0}.8(Ra0.1)
Compressive zog	Max 2300MPa
Fracture Toughness	Max 10 MPa.m1/2



Khoom nta:

1. Refractory, kub tsis kam

2. High voltage, zoo rwb thaiv tsev kev ua tau zoo

3. Superior mechanical zog, siab tawg toughness

4. Siab tsis kam, siab compressive zog

5. Kev tiv thaiv corrosion siab, xws li acid alkali kuj

6. Lub neej ua haujlwm ntev



Khoom siv:

Alumina ceramic nozzles rau sandblasting yog tsim rau kev siv tshwj xeeb nyob ntawm seb hom abrasive siv thiab daim ntawv thov. Nozzles muaj rau ob qho tib si lub teeb thiab hnyav ua hauj lwm thiab yog tsim los muab ib tug uniform tiav rau cov khoom uas lawv tau siv rau.

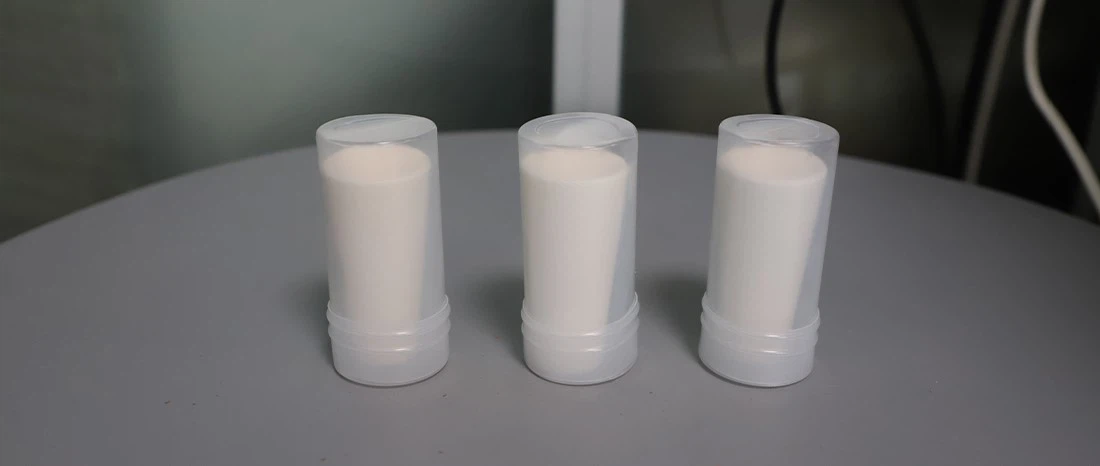

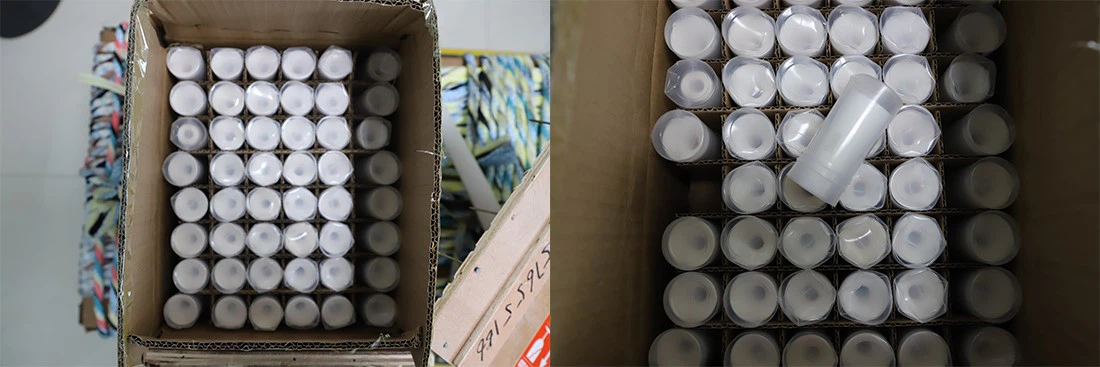

Cov khoom ntim:



FAQ:

Q: Cov qauv pub dawb?

A: Yog lawm, peb tuaj yeem muab cov qauv dawb dawb.

Q: Muaj pes tsawg hnub rau kev kuaj?

A: 7 ~ 10 hnub rau qhov loj me peb muaj.

Q: Muaj pes tsawg hnub rau kev tsim khoom?

A: 30 ~ 60 hnub raws li qhov loj thiab ntau.

Q: Peb puas tuaj yeem muab peb lub logo?

A: Tseeb, cov neeg siv khoom logo tuaj yeem ua los ntawm laser engraved embossed hloov luam ntawv.
